Go Deeper Into Movies—with Bigger Bass

Experience cinematic sound at home with the JBL BAR 500MK2. Crystal-clear dialogue, Dolby Atmos® surround effects, and a wide soundstage bring your entertainment to life. The wireless 10" subwoofer adds deep, punchy bass to movies, music, and games, while MultiBeam™ 3.0 ensures the sound fills your room perfectly. Compatible with all TV brands, this soundbar elevates your home audio experience.

750W Max Output & 10" Wireless Subwoofer

Feel every on-screen explosion, crash, and beat with 750 watts of total system power, including thundering bass from the 10" wireless subwoofer.

Dolby Atmos®

Enjoy 3D audio that surrounds you with cinematic sound from every direction—perfect for movies, music, and games.

MultiBeam™ 3.0

Wherever you sit, you’ll be in the middle of the action. MultiBeam™ 3.0 delivers a wide, cinema-like soundstage for immersive, lifelike audio.

General Specifications

• Model: BAR 500MK2 (soundbar) / BAR 500MK2 SUB (subwoofer)
• Sound system: 5.1 channel
• Power supply: 100–240V AC, ~50/60Hz
• Total speaker power output: 750W
• Soundbar output power: 450W | Subwoofer output power: 300W
• Soundbar transducer: 5 × (42×80)mm racetrack drivers, 4 × 0.75" tweeters
• Subwoofer transducer: 10" (260mm)
• Networked standby power: <2.0W
• Operating temperature: 0°C–45°C

Audio Specifications

• Frequency response: 40Hz–20kHz (-6dB)
• Audio inputs: Optical, Bluetooth, USB (US playback only)

Dimensions & Weight

• Main soundbar: 940 × 50.5 × 104 mm / 37" × 2.0" × 4.1" | Weight: 2.9 kg / 6.5 lbs
• Subwoofer: 325 × 400 × 325 mm / 12.8" × 15.7" × 12.8" | Weight: 8.1 kg / 17.8 lbs
• Packaging dimensions: 1020 × 395 × 490 mm / 40.2" × 15.6" × 19.3"
• Packaging weight: 18.0 kg / 39.7 lbs (EMEA/UK/AU/NZ), 15.9 kg / 34.9 lbs (Others)

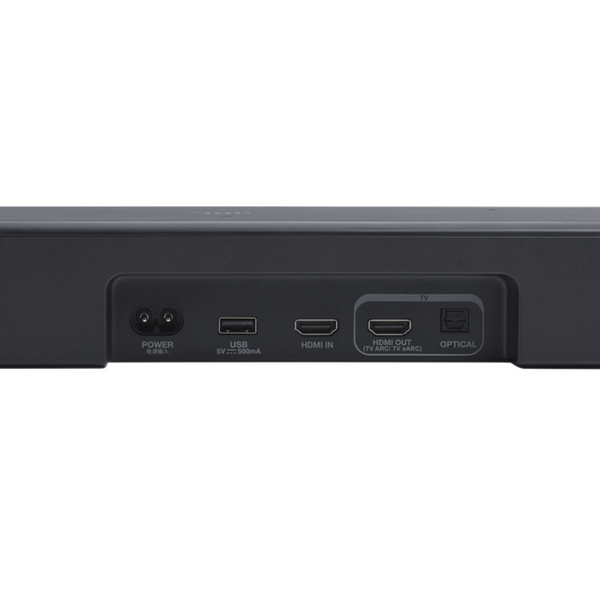

Control & Connection

• USB port: Type A | 5V DC, 0.5A | MP3 playback
• Bluetooth version: 5.3 | Profile: A2DP v1.3, AVRCP v1.5 | 2400–2483.5 MHz | <15 dBm
• Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
• HDMI video input: 1 | HDMI eARC output: 1 | HDCP version: 2.3 | HDR: HDR10+, Dolby Vision

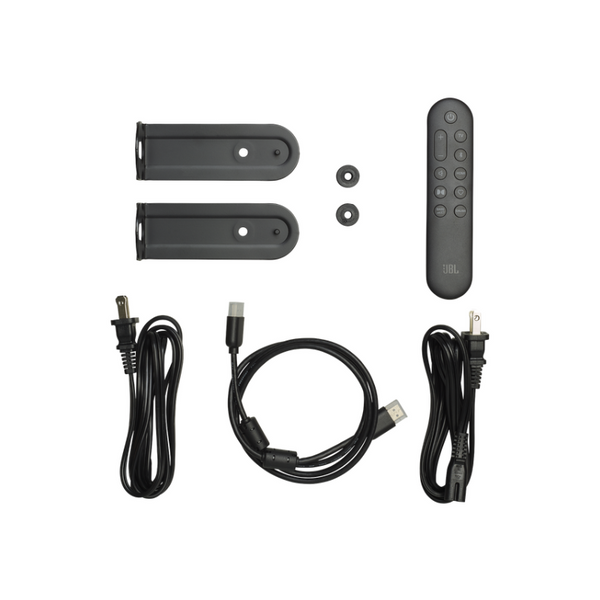

Box Contains

• 1 × Main soundbar
• 1 × Wireless subwoofer
• Remote control with 2 × batteries
• Power cords (up to 6 pcs depending on region)
• 1 × HDMI cable
• 2 × L-shape wall-mount brackets (main bar)
• Quick start guide
• Safety instructions and warranty card
• Wall mount template
