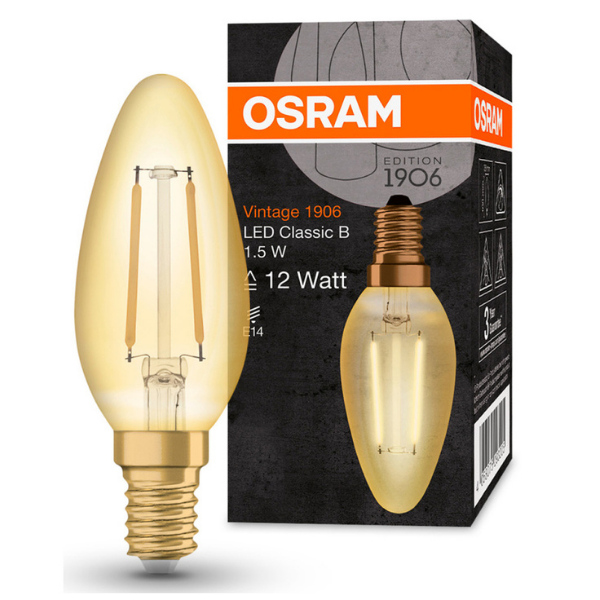

12W
Electrical Data
- Nominal wattage: 1.5 W
- Nominal voltage: 220…240 V
- Claimed equiv. conventional lamp power: 12 W
- Nominal current: 12 mA
- Type of current: AC
- Inrush current: 1.45 A
- Operating frequency: 50…60 Hz
- Mains frequency: 50…60 Hz
- Max. lamp no. on circuit break. 10 A (B): 310
- Max. lamp no. on circuit break. 16 A (B): 666
- Power factor λ: > 0,40
Photometrical Data
- Luminous flux: 120 lm
- Nominal useful luminous flux 90°: 120 lm
- Luminous efficacy: 80 lm/W
- Lumen main.fact.at end of nom.life time: 0.70
- Light colour (designation): Warm Comfort Light
- Colour temperature: 2400 K
- Colour rendering index Ra: ≥80
- Light colour: 824
- Standard deviation of colour matching: ≤6 sdcm
- Rated LLMF at 6,000 h: 0.80
Light Technical Data
- Beam angle: 300 °
- Warm-up time (60 %): ‹ 0.50 s
- Starting time: < 0.5 s
- Rated beam angle (half peak value): 300.00 °
Dimensions & Weight
- Overall length: 100.00 mm
- Length: 100.00 mm
- Diameter: 35.00 mm
- Maximum diameter: 35 mm
- Product weight: 16.00 g
Temperatures & Operating Conditions
- Ambient temperature range: -20…+40 °C
- Maximum temperature at tc test point: 55 °C
Lifespan
- Nominal lamp life time: 15000 h
- Number of switching cycles: 100000
- Lumen maintenance at end of serv: 0.70
- Rated lamp survival factor at 6,000: ≥ 0.90
Additional Product Data
- Base (standard designation): E14
- Mercury content: 0.0 mg
- Mercury-free: Yes
- Design / version: Clear
Certificates & Standards
- Energy efficiency class: A++
- Energy consumption: 2.00 kWh/1000h
- Type of protection: IP20
- Standards: CE, EAC
- Photobiological safety group acc. to EN62778: RG0

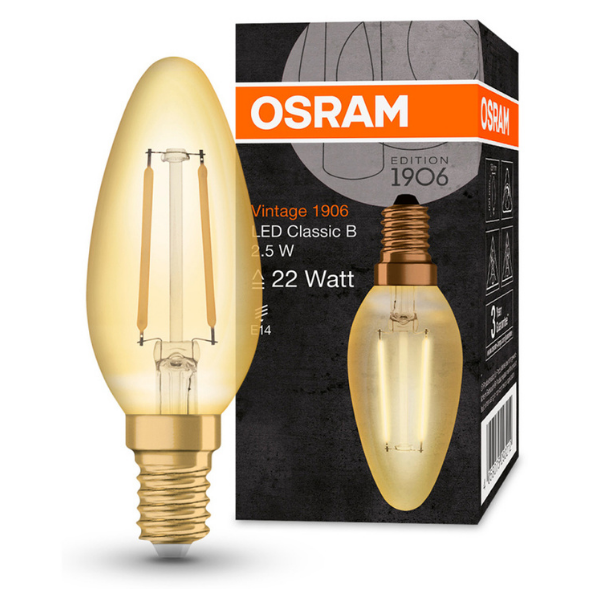

22W
Electrical Data
- Nominal wattage: 2.5 W
- Nominal voltage: 220…240 V
- Claimed equiv. conventional lamp power: 22 W
- Nominal current: 19 mA
- Type of current: AC
- Inrush current: 1.8 A
- Operating frequency: 50…60 Hz
- Mains frequency: 50…60 Hz
- Max. lamp no. on circuit break. 10 A (B): 250
- Max. lamp no. on circuit break. 16 A (B): 400
- Power factor λ: > 0,50
Photometrical Data
- Luminous flux: 220 lm
- Nominal useful luminous flux 90°: 220 lm
- Luminous efficacy: 88 lm/W
- Lumen main.fact.at end of nom.life time: 0.70
- Light color (designation): Warm Comfort Light
- Colour temperature: 2400 K
- Colour rendering index Ra: ≥80
- Light colour: 824
- Standard deviation of colour matching: ≤6 sdcm
- Rated LLMF at 6,000 h: 0.80
Light Technical Data
- Beam angle: 300 °
- Warm-up time (60 %): ‹ 0.50 s
- Starting time: < 0.5 s
- Rated beam angle (half peak value): 300.00 °
Dimensions & Weight
- Overall length: 100.00 mm
- Length: 100.00 mm
- Diameter: 35.00 mm
- Maximum diameter: 35 mm
- Product weight: 16.00 g
Temperatures & Operating Conditions
- Ambient temperature range: -20…+40 °C
- Maximum temperature at tc test point: 60 °C
Lifespan
- Nominal lamp life time: 15000 h
- Number of switching cycles: 100000
- Lumen maintenance at end of serv: 0.70
- Rated lamp survival factor at 6,000: ≥ 0.90
Additional Product Data
- Base (standard designation): E14
- Mercury content: 0.0 mg
- Mercury-free: Yes
- Design / version: Clear
Certificates & Standards
- Energy efficiency class: A++
- Energy consumption: 3.00 kWh/1000h
- Type of protection: IP20
- Standards: CE, EAC
- Photobiological safety group acc. to EN62778: RG0

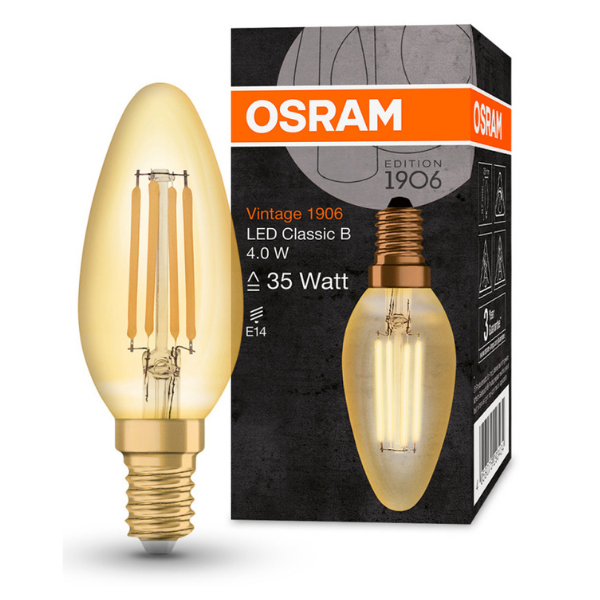

35W
Electrical Data
- Nominal wattage: 4 W
- Nominal voltage: 220…240 V
- Claimed equiv. conventional lamp power: 35 W
- Nominal current: 32 mA
- Type of current: AC
- Inrush current: 1.5 A
- Operating frequency: 50…60 Hz
- Mains frequency: 50…60 Hz
- Max. lamp no. on circuit break. 10 A (B): 400
- Max. lamp no. on circuit break. 16 A (B): 480
- Power factor λ: > 0,50
Photometrical Data
- Luminous flux: 410 lm
- Nominal useful luminous flux 90°: 410 lm
- Luminous efficacy: 102 lm/W
- Lumen main.fact.at end of nom.life time: 0.70
- Light colour (designation): Warm Comfort Light
- Colour temperature: 2400 K
- Colour rendering index Ra: ≥80
- Light colour: 824
- Standard deviation of colour matching: ≤6 sdcm
- Rated LLMF at 6,000 h: 0.80
Light Technical Data
- Beam angle: 300 °
- Warm-up time (60 %): ‹ 0.50 s
- Starting time: < 0.5 s
- Rated beam angle (half peak value): 300.00 °
Dimensions & Weight
- Overall length: 100.00 mm
- Length: 100.00 mm
- Diameter: 35.00 mm
- Maximum diameter: 35 mm
- Product weight: 16.00 g
Temperatures & Operating Conditions
- Ambient temperature range: -20…+40 °C
- Maximum temperature at tc test point: 65 °C
Lifespan
- Nominal lamp life time: 15000 h
- Number of switching cycles: 100000
- Lumen maintenance at end of serv: 0.70
- Rated lamp survival factor at 6,000: ≥ 0.90
Additional Product Data
- Base (standard designation): E14
- Mercury content: 0.0 mg
- Mercury-free: Yes
Certificates & Standards
- Energy efficiency class: A++
- Energy consumption: 4.00 kWh/1000h
- Type of protection: IP20
- Standards: CE, EAC
- Photobiological safety group acc. to EN62778: RG0
