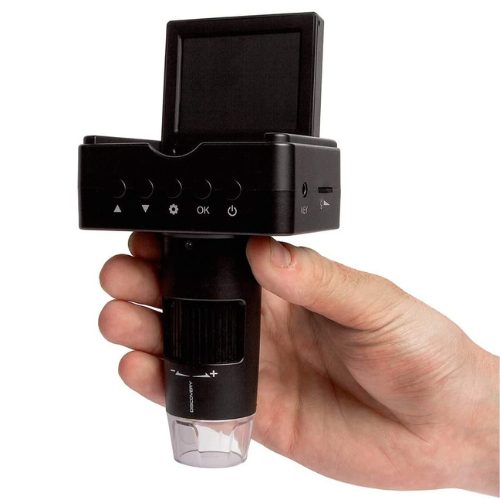

The DX-3 USB microscope is capable of up to 2000x magnification (digital) and Full HD 1080p video output is a leader in its class. Equally at home when used in the office or ready for use out 'in the field' thanks to the built-in rechargeable battery. The DX-3 is equipped with additional features including 2.4" TFT live view screen, microSD slot for storing video footage and photo stills, plus HDMI output. Ideal for industrial inspection, computer components inspection, scientific teaching tool, laboratory research, medical analysis, plant dissection/examination, jewelry inspection, printing inspection and more. The DX-3 ships with a height adjustable stand, microSD card and calibration software.
VIDEO & STILLSSnapshot and video recording function, up to Full HD 1080P.
MAGNIFICATION10x or 220x magnification (up to 2000x digital zoom)
LIVE VIEWBuilt-in 2.4” LCD live view screen
BUILT-IN BATTERYBuilt-in lithium rechargeable battery, enables use 'out in the field'
MEASUREMENT FUNCTIONRecord measurements using included calibration software
MICRO SD SLOTThe microSD slot means that images and video footage can be saved and downloaded at a later date
Technical Features
- Image Sensor: 3.5MP
- Lens: 5G+IR CUT
- Controller: High Speed DSP
- Focal Range: 5mm-infinity
- Stand Height: adjustable stand
- LCD Panel: 2.4” TFT
- Memory: microSD card slot (up to 32GB SDHC)
- HDTV output: HDMI
- Flicker Rate: 50Hz/60Hz
- Light Source: 8 x built-in LED lights
- Magnification: 10x or 220x (up to 2000x digital zoom)
- Power: Built-in Lithium Rechargeable Battery 800mAh, Power Adapter, USB Port
- Software: PortableCapture HD
- Video Capture: Full HD 1080P
- Video Format: AVI
- Photo Capture: 3MP/5MP/8MP/12MP
- Operating System: Windows 7/8/10, Mac OS 10.5-10.13
- Languages: English, German, French, Spanish, Russian, Italian, Portugese, Dutch, Polish, Japanese, Korean, Chinese
Box Contains
- Veho DX-3 Microscope
- Height adjustable stand
- AC power adapter
- Capture remote control
- HDMI cable
- USB cable
- TV cable
- microSD card
- Calibration ruler
- Software CD
- Quick start guide
